Using Virtual gates

Manually

In section a short example will be shown how to access manually parts of the virtual gate matrix.

The virtual gates present in the system can be present the system can be inspected by:

from core_tools.drivers.hardware.hardware import hardware

hw = hardware()

print(hw.virtual_gates)

This returns if configured as in the previous section:

Found 1 virtual gate matrix :
	name :: test 	(size = 16x16)

The content of this virtual gate matrix can be accessed like

v_mat = hw.virtual_gates.test

# altneratively you can also call by the order it appeared prev
# v_mat = hw.virtual_gates[0]

# printing the contents
print(v_mat)

Returning:

Virtual gate matrix named test
Contents:

Gates : ['B0', 'P1', 'B1', 'P2', 'B2', 'P3', 'B3', 'P4', 'B4', 'P5', 'B5', 'P6', 'B6', 'S6', 'SD1_P', 'SD2_P']
Virtual gates : ['vB0', 'vP1', 'vB1', 'vP2', 'vB2', 'vP3', 'vB3', 'vP4', 'vB4', 'vP5', 'vB5', 'vP6', 'vB6', 'vS6', 'vSD1_P', 'vSD2_P']
Matrix :
[1. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
...

Elements can be accesed by using the following operators :

# set entry 0,1 to 0.1
v_mat[0,1] = 0.1

# replace the whole matrix :
v_mat.matrix = np.eye(len(v_mat.matrix))

Using a GUI

This is by far the easiest method for modifying the virtual gate matrix, the GUI can be opened by calling:

from core_tools.GUI.virt_gate_matrix_qml.gui_controller import virt_gate_matrix_GUI

# keep reference to GUI in variable to avoid garbage collection of whole GUI.
gui_virt_gates = virt_gate_matrix_GUI()

The result should look something like:

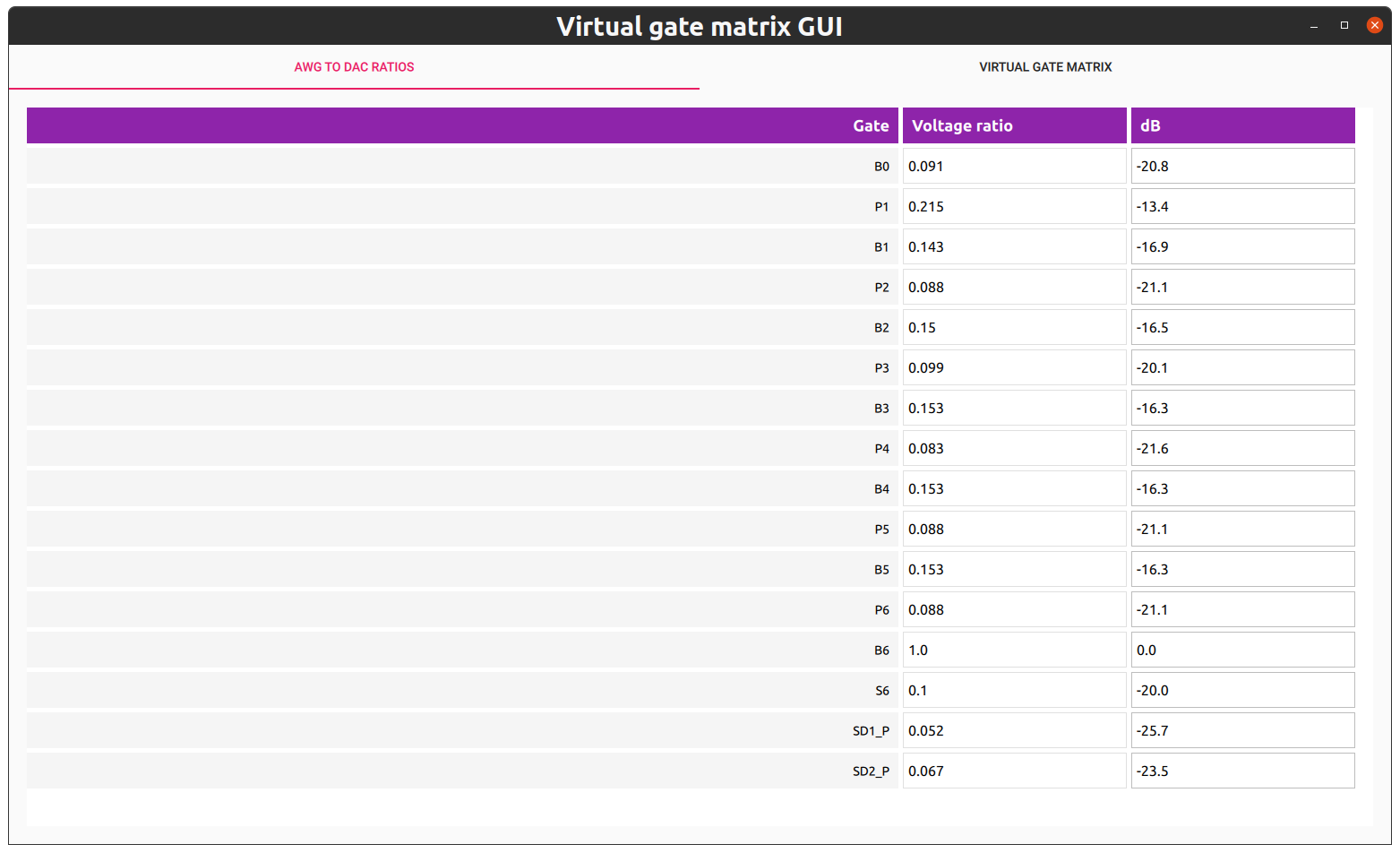

In the AWG to DAC ratio tab, the AWG to dac ratio’s can be set:
